Материнская плата IEI SSC-486H

Name: Материнская плата IEI SSC-486H
Brand: IEI
SKU: SSC-486H
Price: 219 USD
Availability: instock

$ долларов США219.00

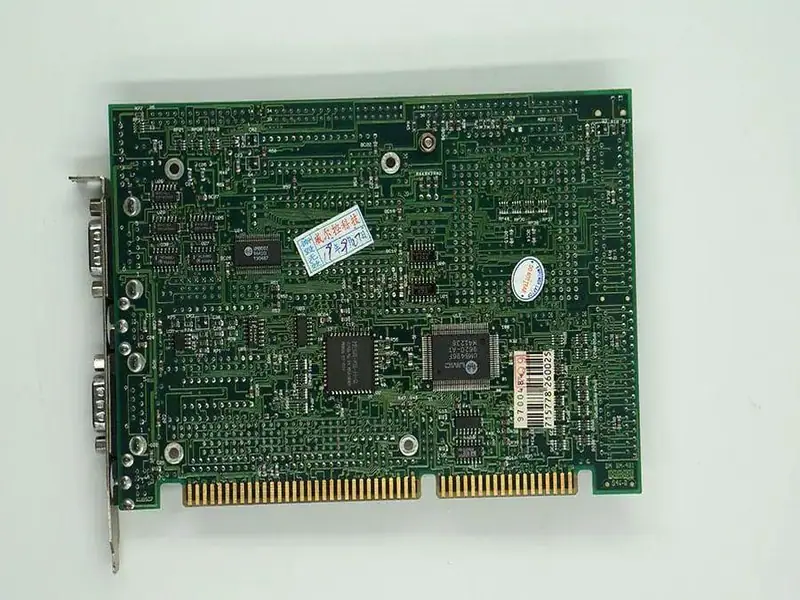

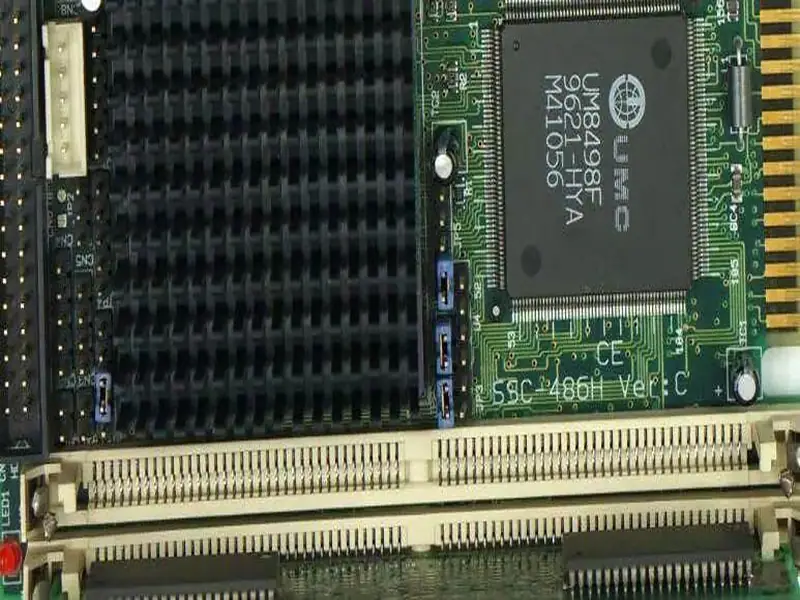

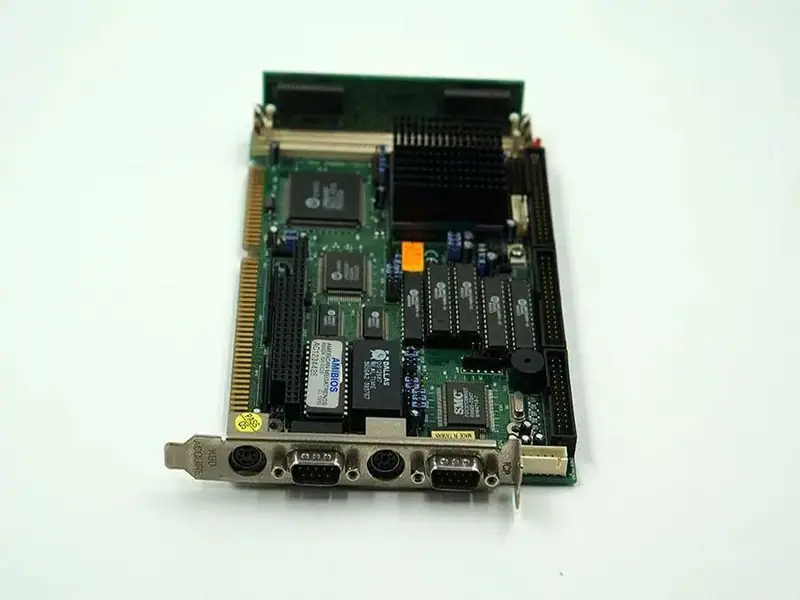

IEI SSC-486H версия: C Промышленная материнская плата

Артикул: SSC-486H Категория: использовал

Спецификация материнской платы

Form Factor	PICMG
Ethernet Chipset	Realtek RTL8100B
System Chipset	VIA VT8606
Video Chipset	VIA VT8606T
BIOS	27C512 EPROM with Award BIOS
Bus Interface	ISA Bus
Cache	128KB, 256KB or 512KB
CPU	Intel™ DX4-75/100MHz, AMD™ 486DX2-66/80MHz, Cyrix™ Cx486DX2-50/66MHz, UMC 486SX-33
Dimension	7″ x 4.8″
FDD	Supports up to two floppy disk drives
Humidity	5%-95% (non-condensing)
I/O Chipset	SMC FDC37C665
IDE	Four IDE disk drives supporting ATA/33
IrDA	One IrDA TX/RX header
Maximum Power Consumption	model:2571-08TS, 8-pin male con.
Memory	Two Sockets SIMM 1MB to 64MB DRAM (EDO, DRAM)
Operating Temperature	0~60° C
PC/104	PC/104 connector for 16bit ISA Bus
Processor	Intel i386SX
SerialPort	16C550 UART-compatible RS-232/422/485 x 1 and RS-232 x 1 serial ports with 16 byte FIFO
Watchdog Timer	Sets 1, 2, 10, 20, 110, 220 seconds activity trigger with Reset or NMI

Вес	1 кг
