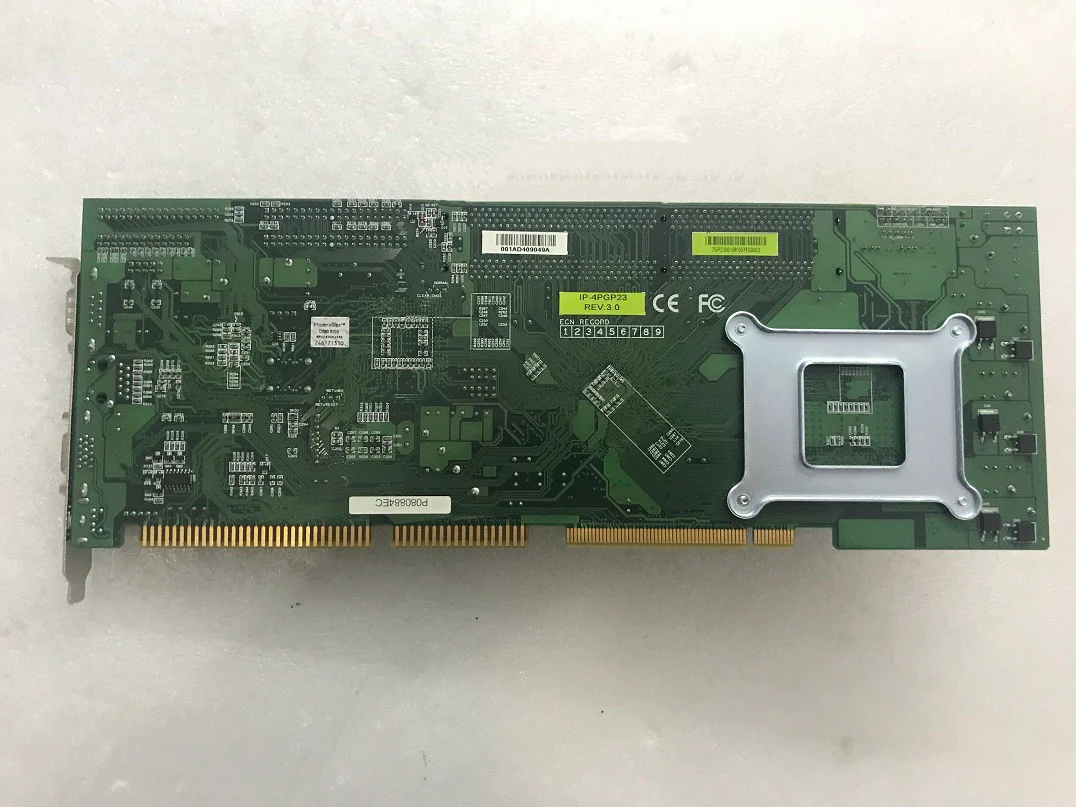

Материнская плата Ennoconn IP-4PGP23

Name: Материнская плата Ennoconn IP-4PGP23
Brand: Ennoconn
SKU: IP-4PGP23
Price: 204 USD
Availability: instock

$ долларов США204.00

Промышленная материнская плата Ennoconn IP-4PGP23 865G

Артикул: IP-4PGP23 Категория: использовал

Спецификация материнской платы

Features

h	Socket478 Pentium® 4/Celeron™ Processor,up to 3.2GHz
h	Intel®865G chipsets + ICH5, 533/800 MHz FSB
h	Chipsets integrated VGA function
h	Support 10/100/1000/Base-TX Ethernet
h	Optional IP-ALCS20 aution card
h	4x USB2.0 ports, 2x COM ports 2 S-ATA ports
h	WatchDog timer &Hardware monitoring function

Технические характеристики

h	CPU	support Intel®Socket-478 Pentium®4 /Celeron® processor Up to 3.2GHz
h	System Memory	Two 184-pins DIMM support 333/400MHz DDR, up to 2GB(max.)
h	System Chipset	Intel® 865GL / ICH5 Chipset
h	BIOS	Award BIOS
h	Display	Intel® 865G chipset integrated VGA function
h	Ethernet	Intel® 82562EM chipset
h	I/O	Onboard Winbone®83627HF Chip,support: – 1 x Floppy interface – 1 x lrDA by 5-pin pin-header – 1 x SPP/EPP/ECP parallel port by pin-header, – 2 x COM ports for RS-232 – 4 x USB 2.0 ports by pin-header
h	SSD
h	WDT	256 Levels software programable
h	Hardware monitoring
h	Support ATX power control function
h	Operating Temp	0 – 60°C
h	Relative Humidity	10~90% (Non-condensing)
h	Dimension	13.3″ x 4.8″ (338mm x 122mm)
h	Certification	CE, FCC pre-scan approval

Вес	1 кг
